Brand Name : HAISEN
Model Number : HD402S-6
Certification : UL FCC
Place of Origin : China
MOQ : 120pcs/ctn
Price : Negotiable
Payment Terms : D/A, D/P, T/T
Supply Ability : 1-10pcs Samples Within 2-3 Days; Bulk Order Within 28 Days
Delivery Time : Standard Models Within 3 Weeks
Packaging Details : Packed in Individual box, Reinforced With Paper Flat, Then Packed With Outer Carton
Color : White
Setting : DIP Swtich
Function : ON/OFF
Warrabty : 3 years

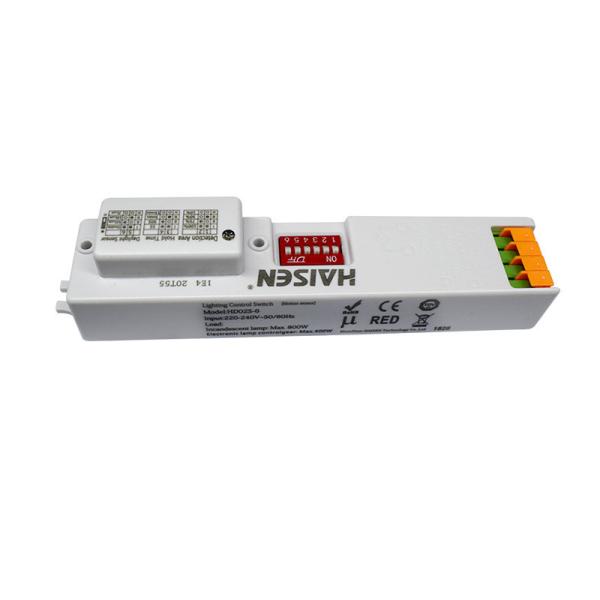

UL FCC Certificated On/Off Microwave Motion Sensor HD402S-6

Features:
Sensor Parameter:
| Detection area | 10%/50%/75%/100% |
| Hold time | 5s/90s/5min/10min |
| Daylight threshold | 2Lux/10Lux/50Lux/Disable |
Other Parameter:
| Operating voltage | 120VAC 50Hz/60Hz |
| Switching capacity | Max.3.0A@120Vac |
| Microwave frequency | 5.8GHz±75MHz |
| Mounting height | 2.5-6m/8.2-19.68ft (ceiling mounted) |
| Detection range | Radius, 3-6m/9.84-19.68ft (ceiling mounted) |
| Microwave power | <0.3mW |
| Stand-by power | ≤1W |
Installation:

*Please contact us for more details*
|
|

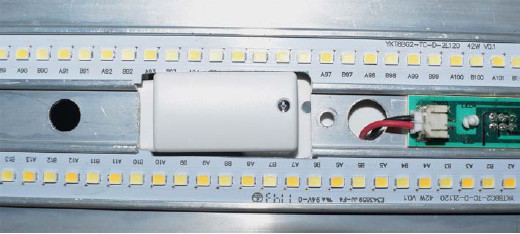

UL FCC Certificated Dimmable Microwave Motion Sensor With ON/OFF Function HD402S-6 Images |
